Roll Feed Cutting Plotter-GR8000-180
1.Reliable long-length tracking.
2.Cutting small text strings accurately.
3.Static electricity free.
4.Compatibility with Adobe Illustrator(AI),CorelDRAW,AutoCAD. see more features listed as below.
 |  |  |

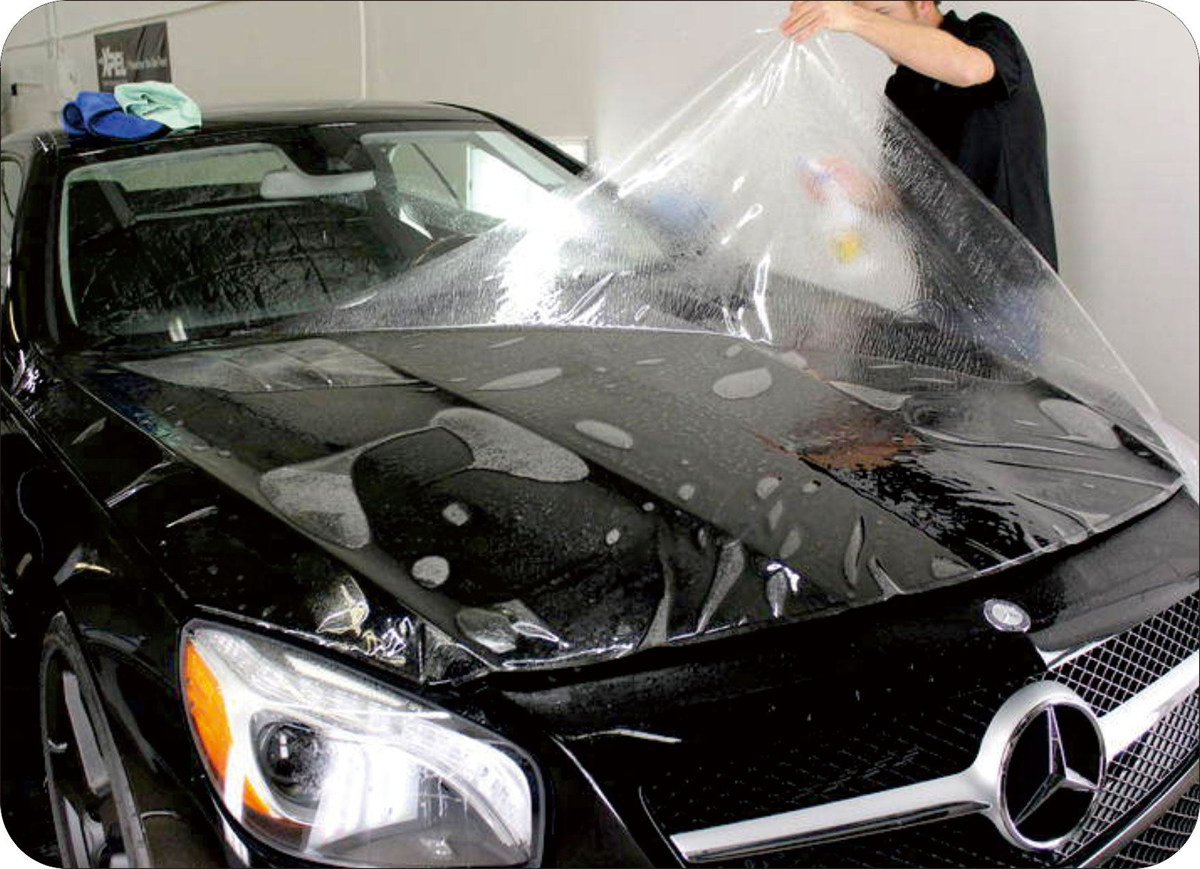

| Paint Protection Film/PPF | Vehicle Wrap | Interior Protection Film |
 | Static Electricity FreeStatic interference is a big headache to cutters, while that is not the case with GUNNER, as we eliminate it and have tested that year-round in different weathers. |

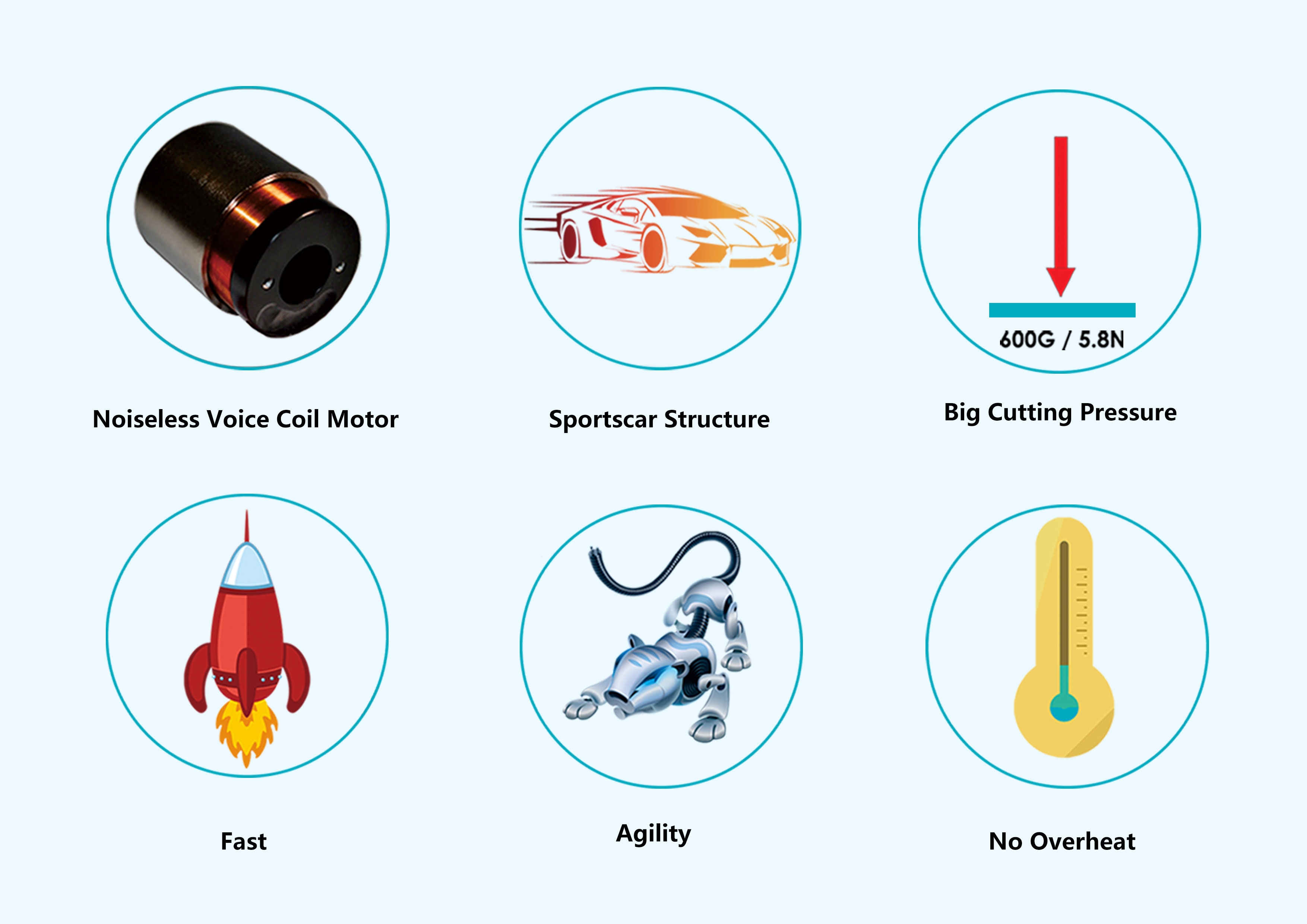

 | Advanced Tool CarriageThe tool carriage is in the structure of sports car, it’s driven by silent voice coil motor. The tool carriage is featured as fast, agile and no overheat for long-time non-stop operation. It is a leading tool carriage in the same field. |

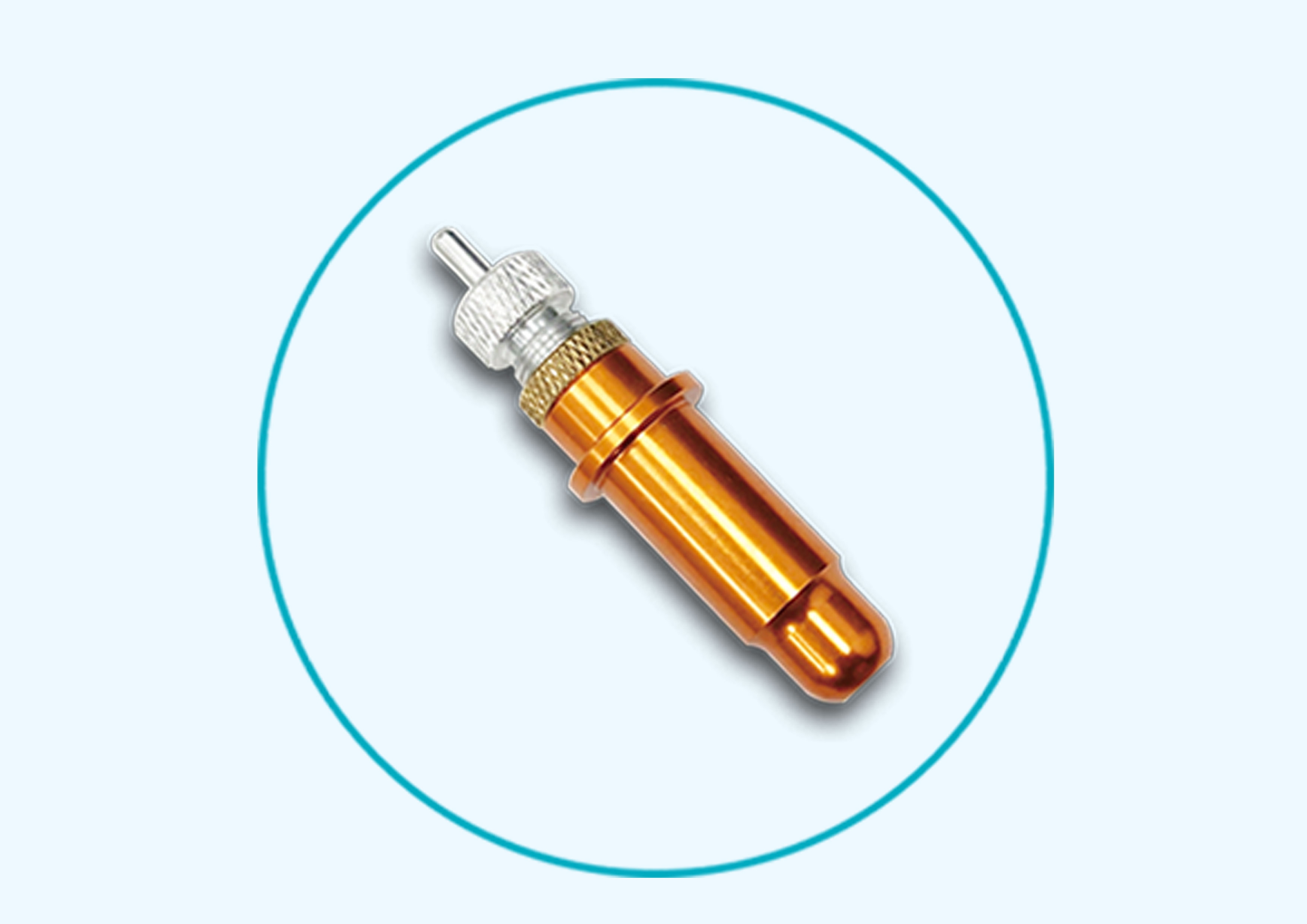

 | Fine Cutter HolderCutter blade runs precisely and won’t drop cutting thick, sticky medias. |
 | Accurate Rigid Push RollersOur push rollers are made from hard materials, it is capable of working accurately for long time. The push rollers can be set to two pressure levels: Strong/ Low.The combination of accurate rigid push rollers, precise material feeding rollers and quality media bracket rollers ensure stable long length tracking of material. |
 | Making Blade-tip Compensation by HardwareWe program and make the core of the machine, both software and hardware. GUNNER’s controller runs with advanced algorithm, easy to upgrade and tailor for customers as we own it.Our system makes blade-tip compensation by hardware/ main board but not software, the cutter works with constant high precision no matter what kind of CAD / CAM software is applied. |

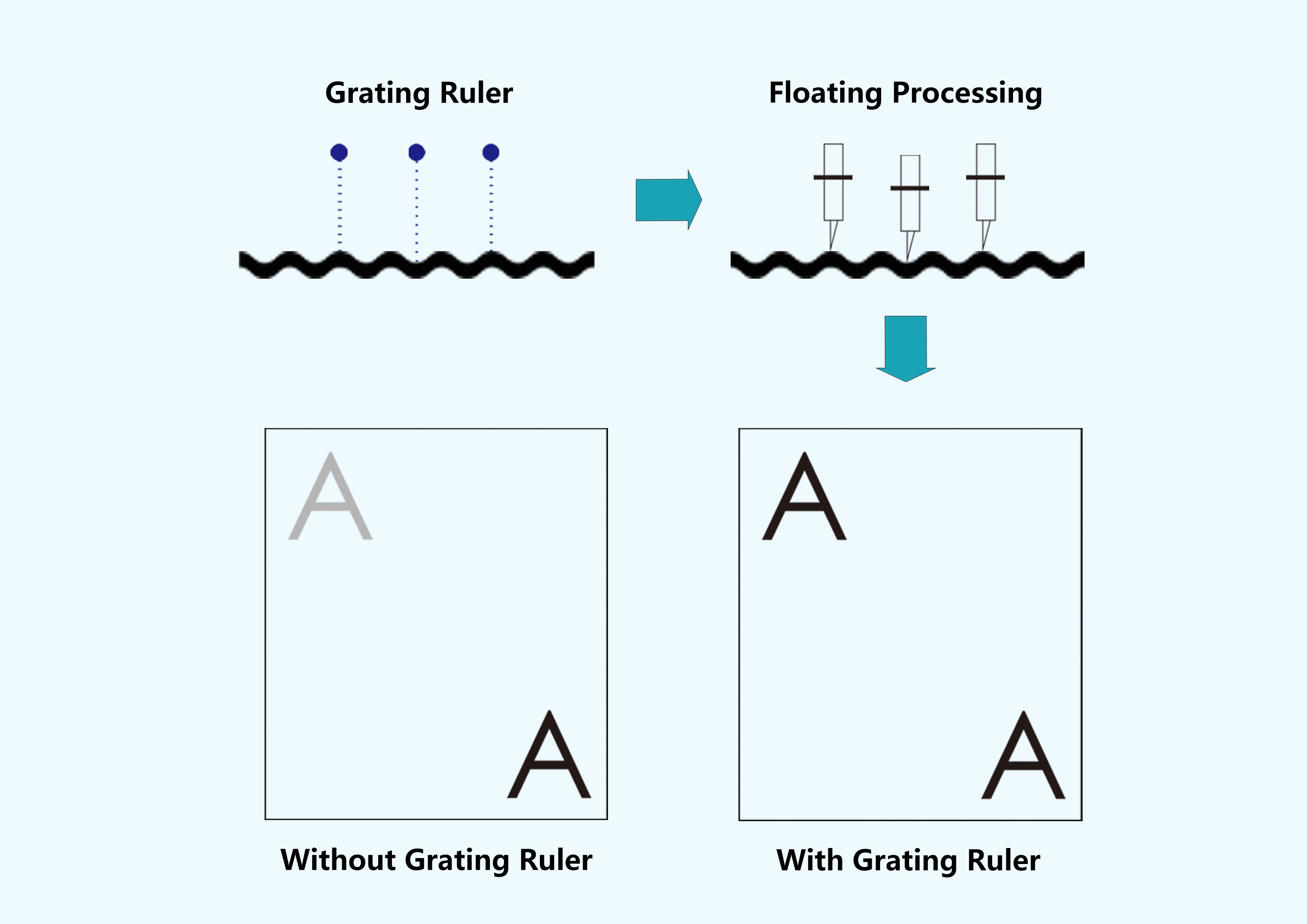

 | Grating RulerInevitably the material surface is not at the same height from point to point, the Grating Ruler is applied to measure the distance between blade tip and material surface, and the cutting depth is adjusted in every 0.01mm by the controller accordingly. Then the blade travels up and down as material surface goes to keep the same cutting depth at any position of the tool path across the entire table.In short, the cutting depth is consistent and no different shades. |

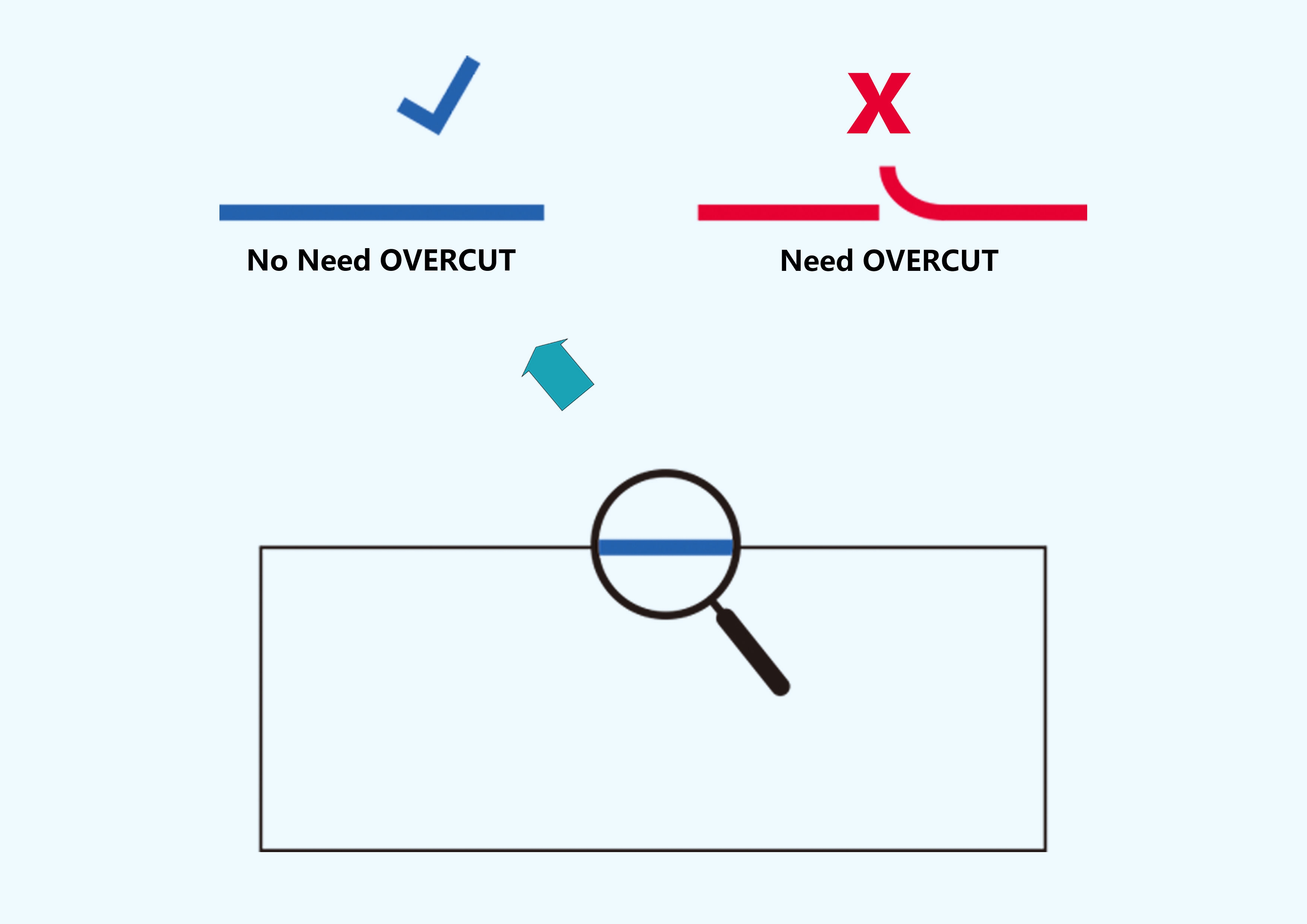

 | No Need OVERCUTIn every cutting path, the start and end nodes join with each other accurately, while no need to setup any OVERCUT. |
 | Clean Smooth Edge QualityThe Grating Ruler and correspondent cutting force management deliver clean smooth edge quality, even for the most complex jobs. GR8000 series is able to cut small text strings and it is easy to peal off the waste material, which cut down workload greatly for the users. |

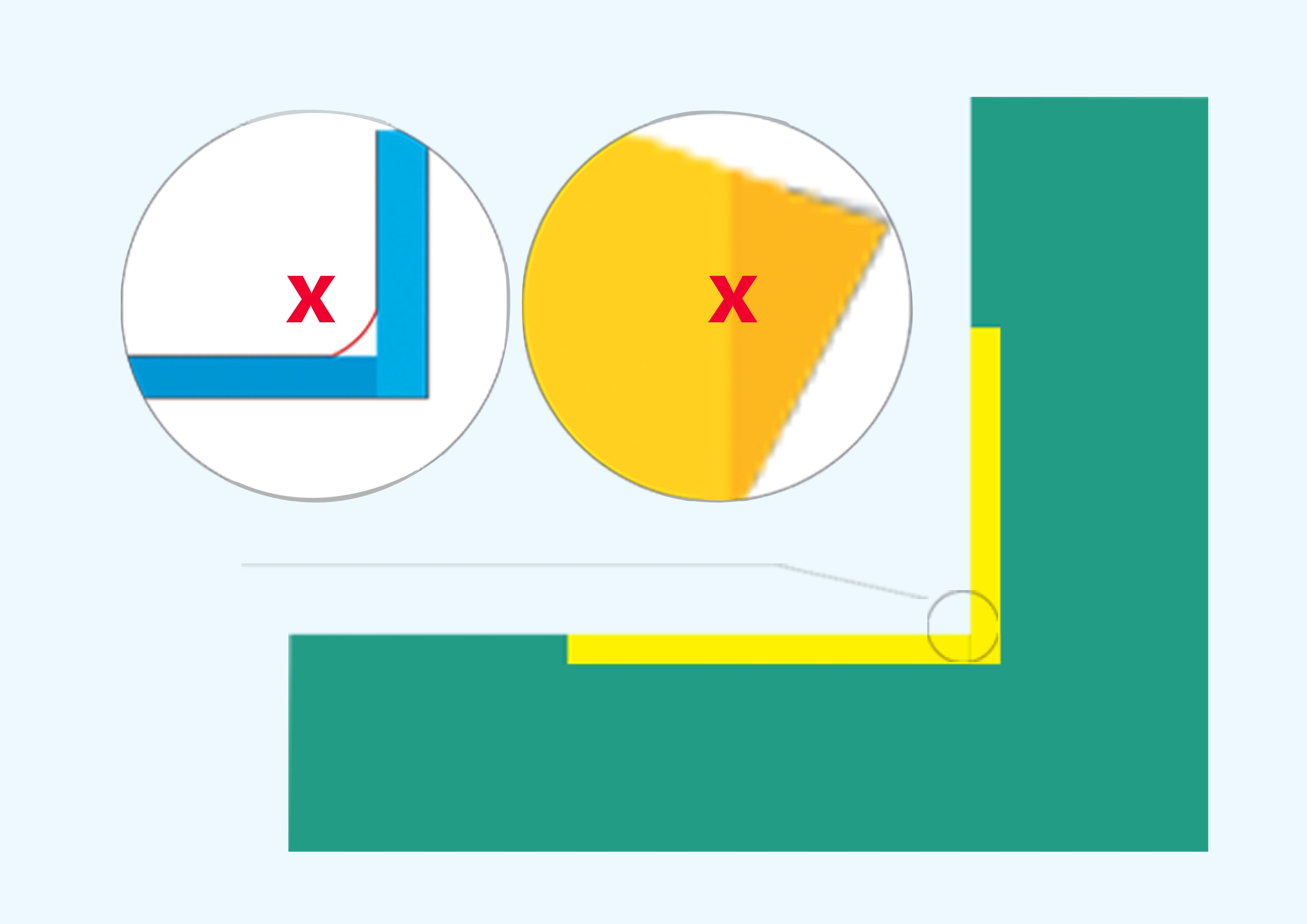

 | Advanced AlgorithmObvious elimination of distorted, rounded or lifted corners. |

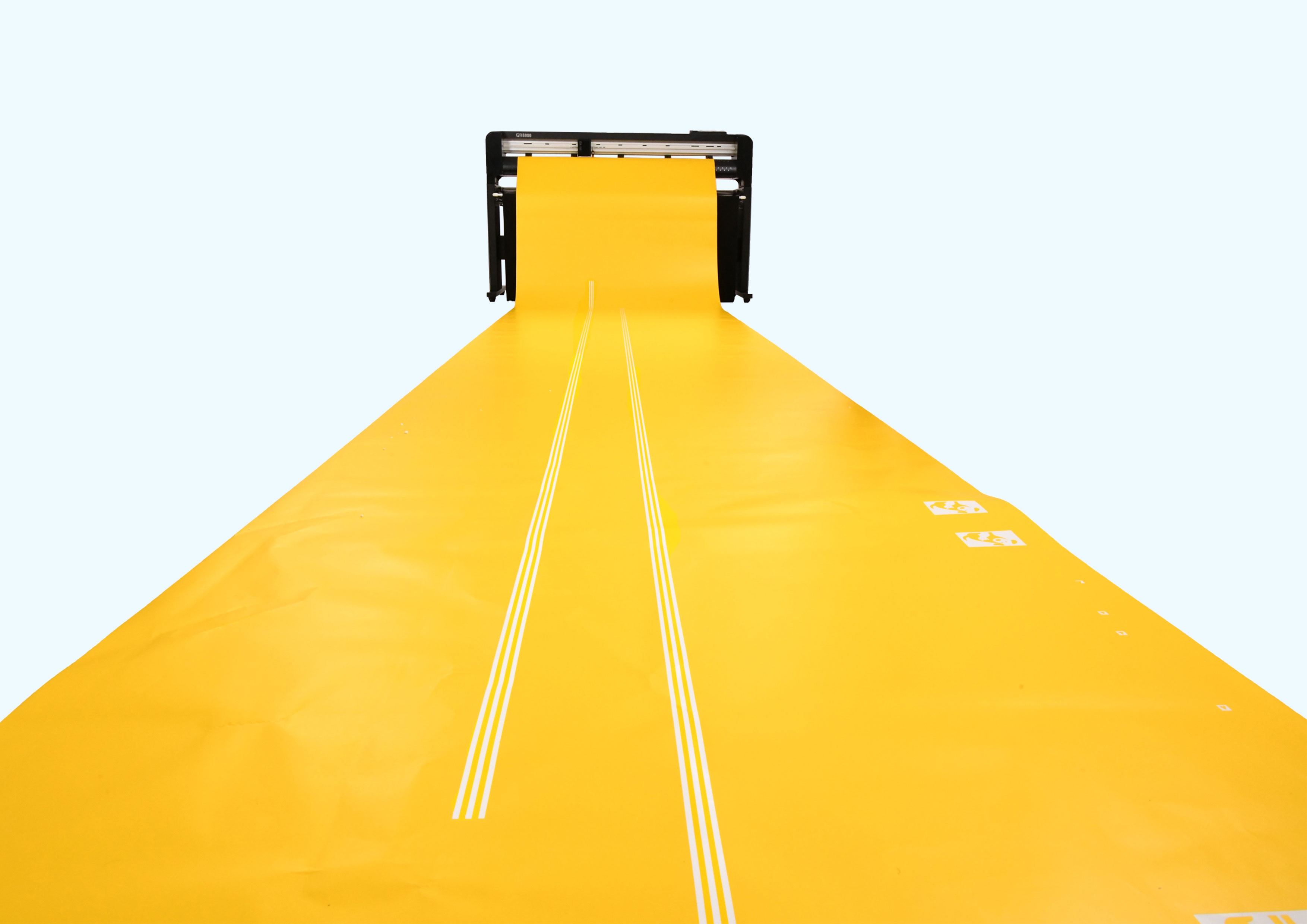

 | Stable Accurate Tracking for 7 meters / 23ftLeading most of the competitors, the GR8000 series is able to do stable long length tracking for 7 meters / 23ft, which is an important feature for high-level processing, it is ideal for big sign, pattern making. |
 | Media SensorIt is applied to measure the size of media, the cutting/ plotting operation won’t be carried out if media size is not big enough for the contents, and controller will ask operator to enlarge the media or decrease the size of contents. Media sensor helps greatly in saving media and increasing efficiency. |

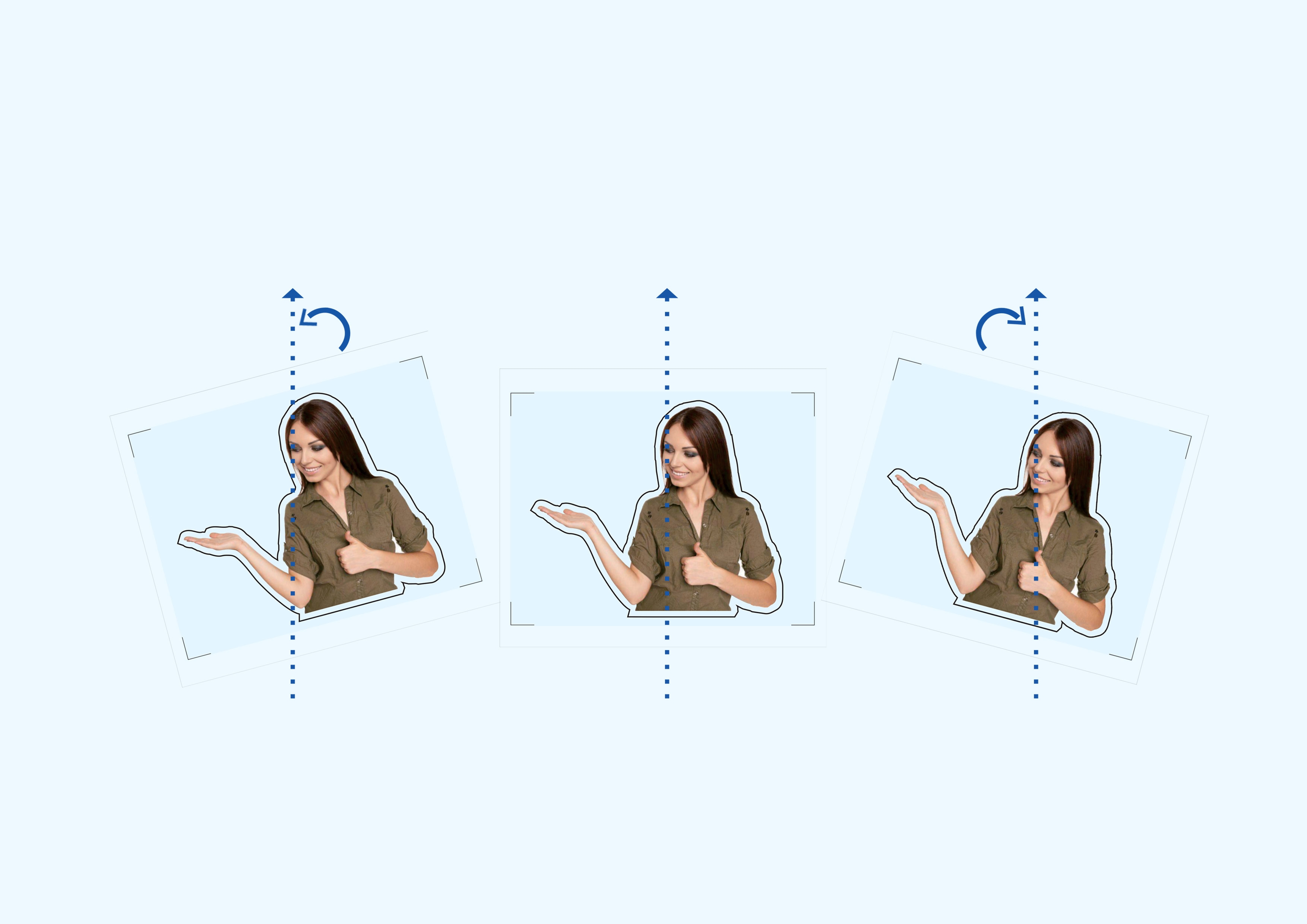

 | Advanced Registration Marks Sensor /ARMSGUNNER’s software generates contour(s) in just one -click, and registration marks are setup conveniently also. Red laser sensor is applied to identify those marks quickly and then the contour cutting is ready to go. To identify the registration marks, it’s no need to let the cross of red laser close to the center of the marks as much as possible manually but just just put it around the mark, then the sensor goes to find the center by itself. More importantly, operators just need to drive the sensor to the place around the first mark, then the machine goes to identify all of the marks by itself. Fine adjustment of the relative position between cross of red laser and registration marks with software is available.If material is placed askew in a way, the machine is still able to work fine, so it is unnecessary to put material always horizontally and vertically, this feature helps a lot to save time. |

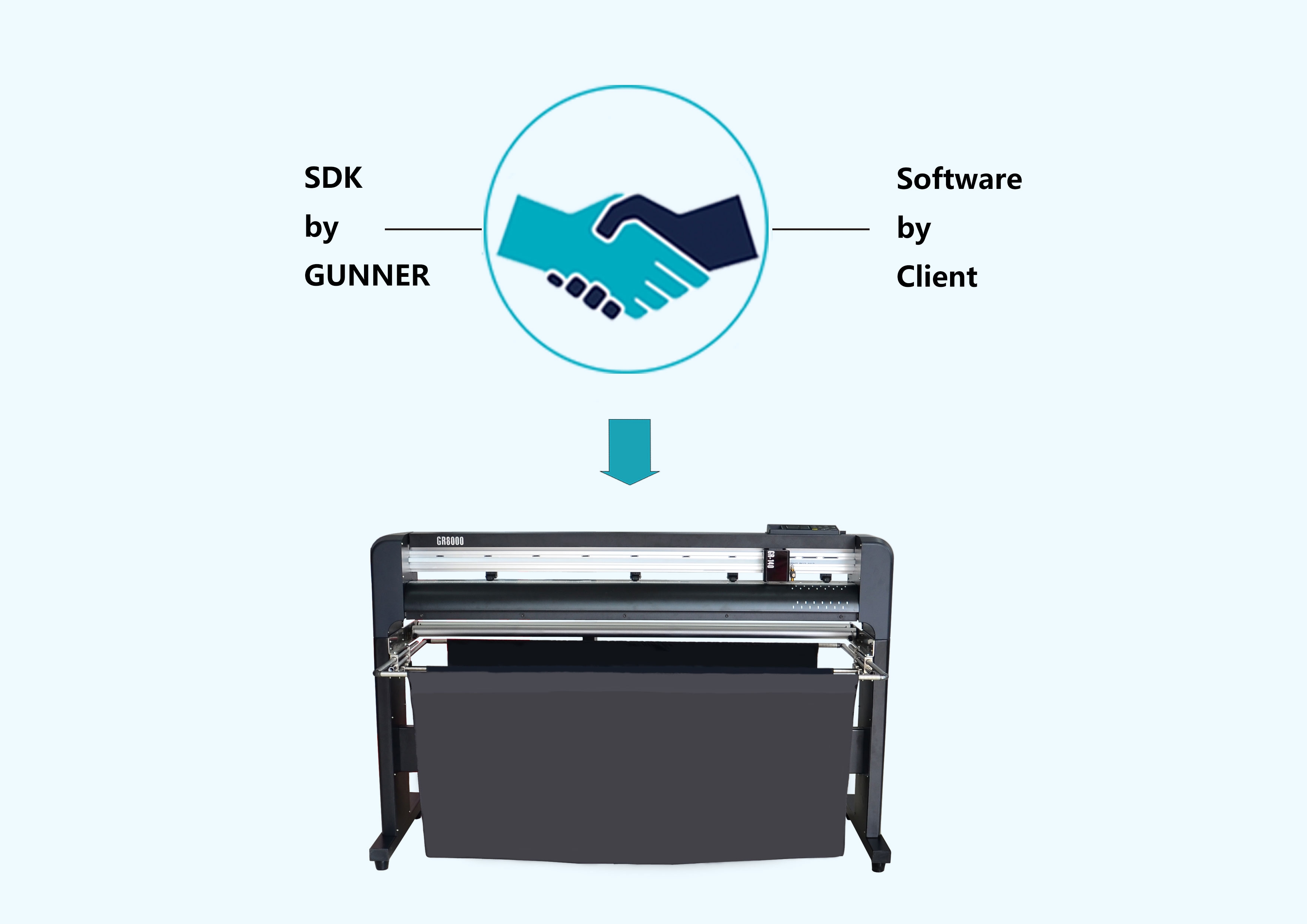

 | Handshake ProtocolWe supply Software Development Kit / SDK to match with client’s software, which deepen cooperation between Gunner and Professional clients. |

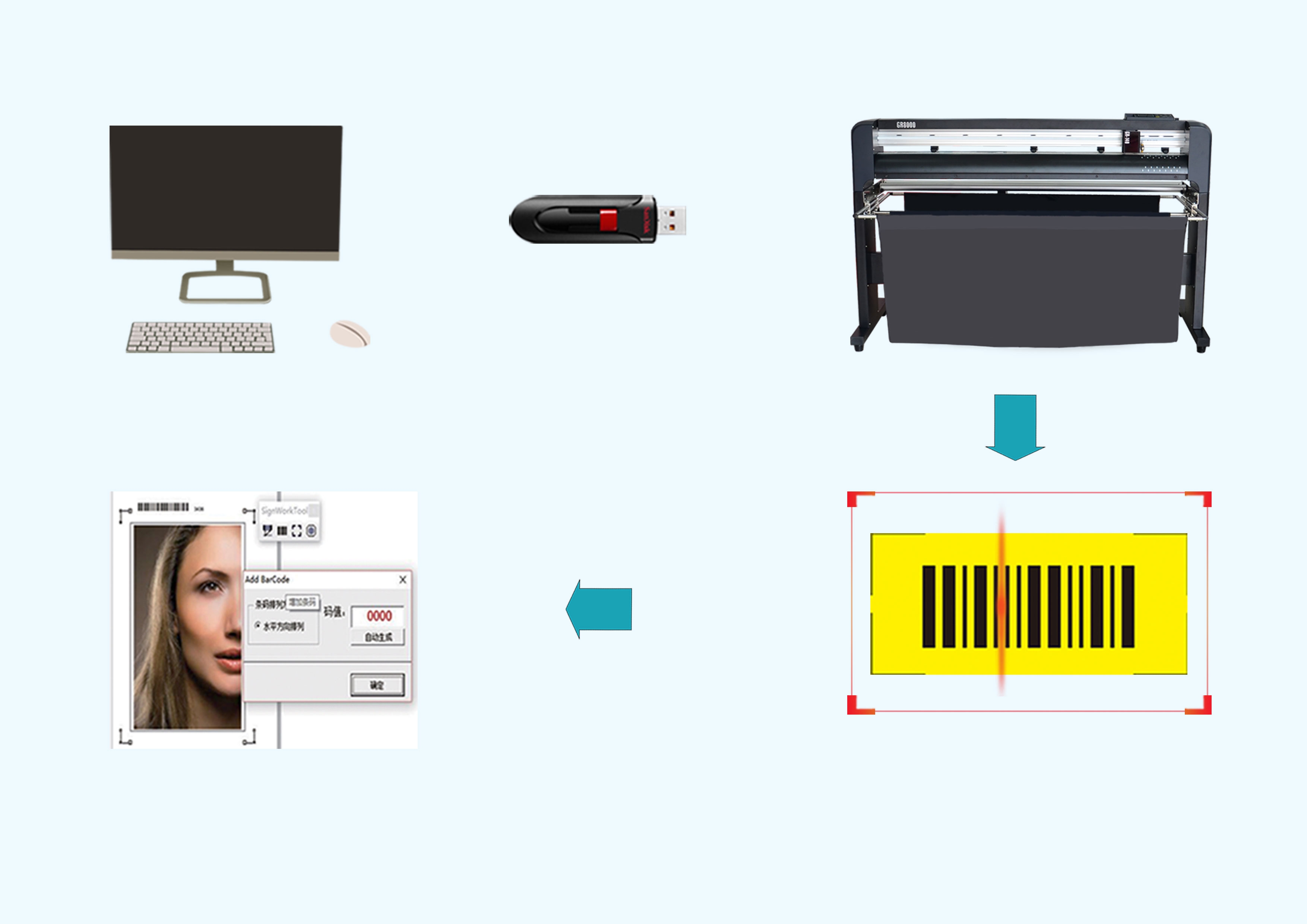

 | Scanning Bar-code Offline with USB MemoryOne-click to recognize the cutting job from those saved in the USB memory by scanning the Bar-code which is pre-printed, while not requiring to connect to computer. This function is especially helpful to increase the productivity when there are many files stored in the USB memory. USB memory / offline function is able to send same cutting job repeatedly. |
 | Half Cut / Perforation CutHalf cut / Perforation cut are available, every time you may carry out either one or both. |

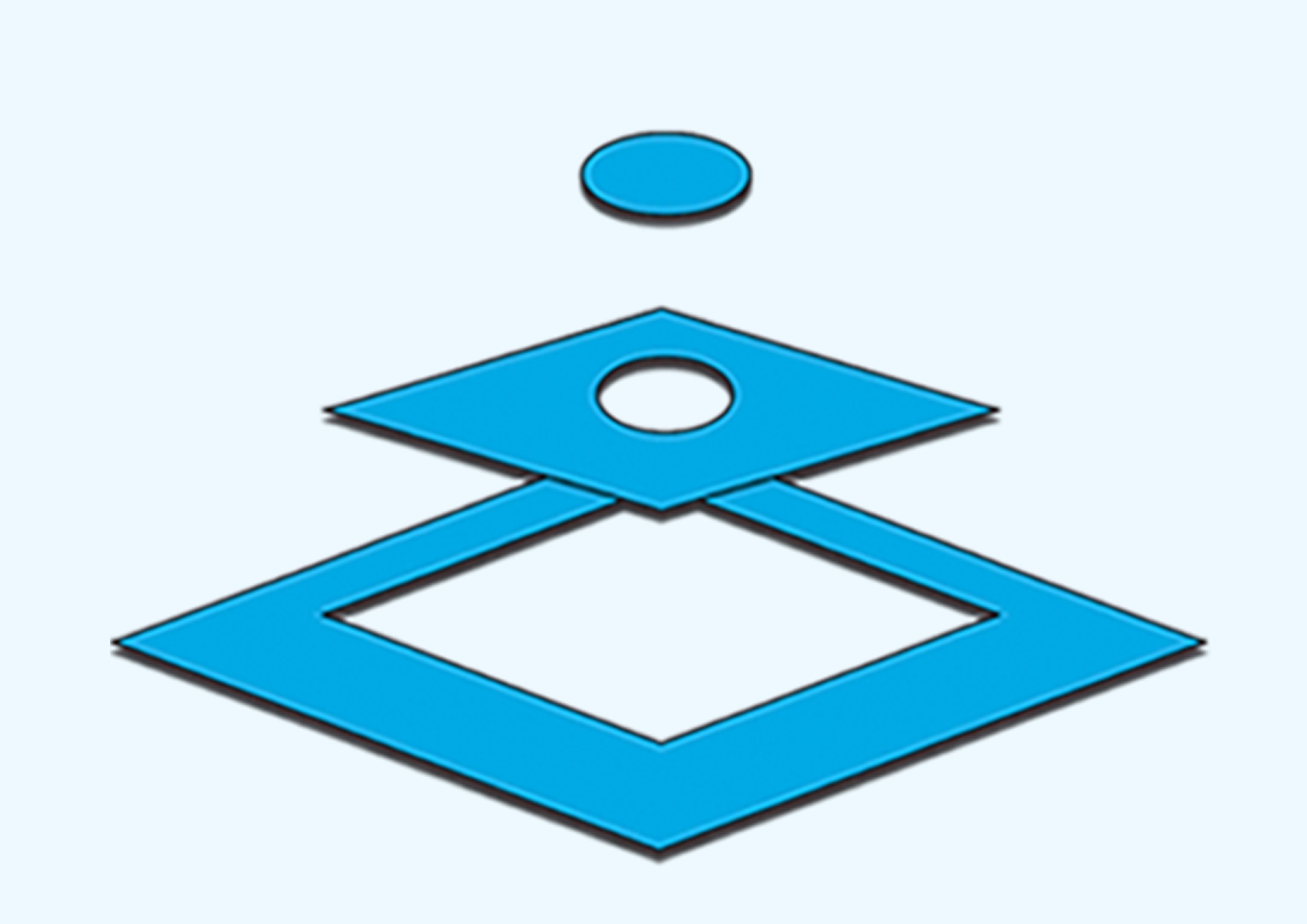

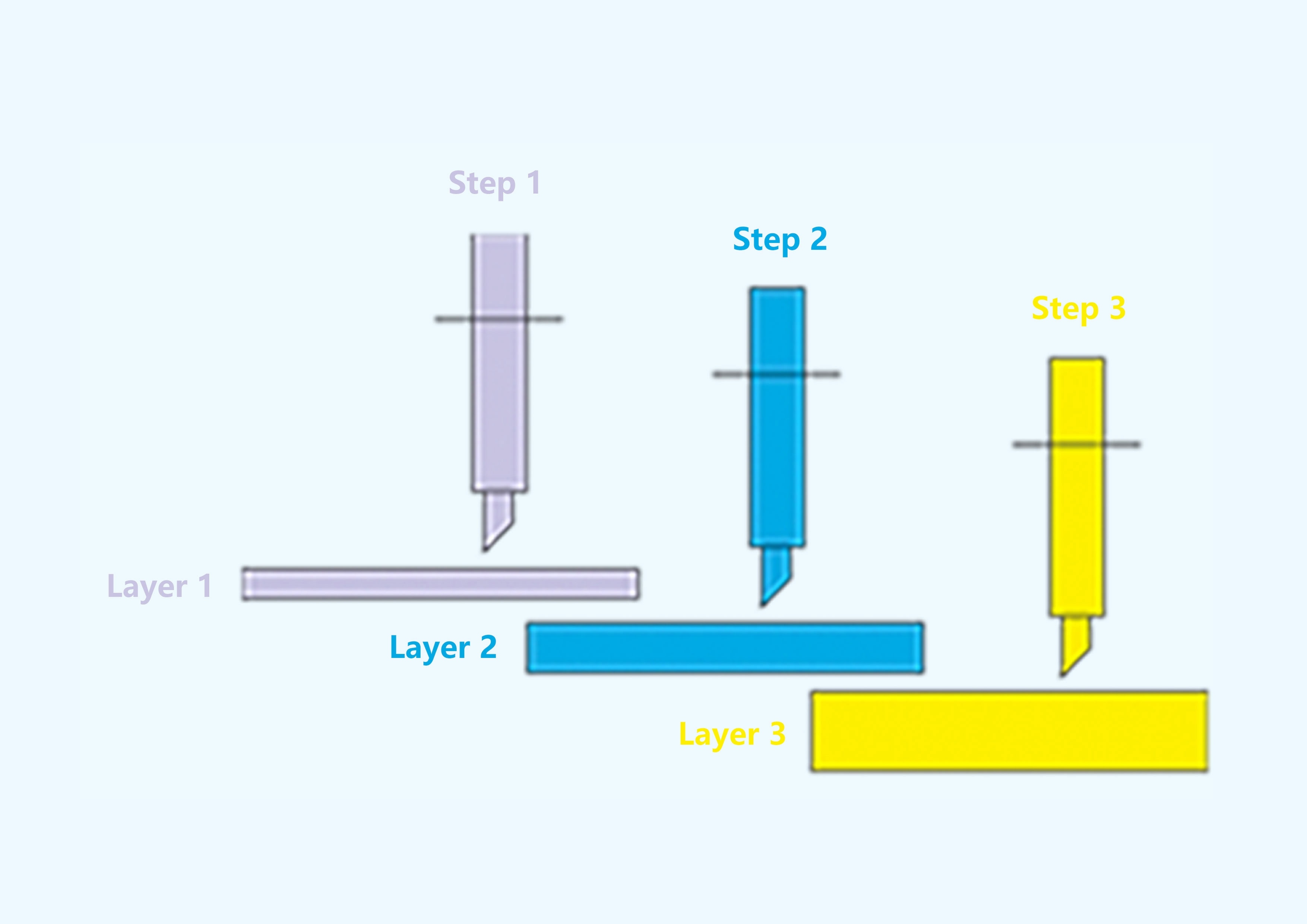

 | Multiple Layers SolutionFor medias with multiple layers, different cutting force is applied for different layer. |

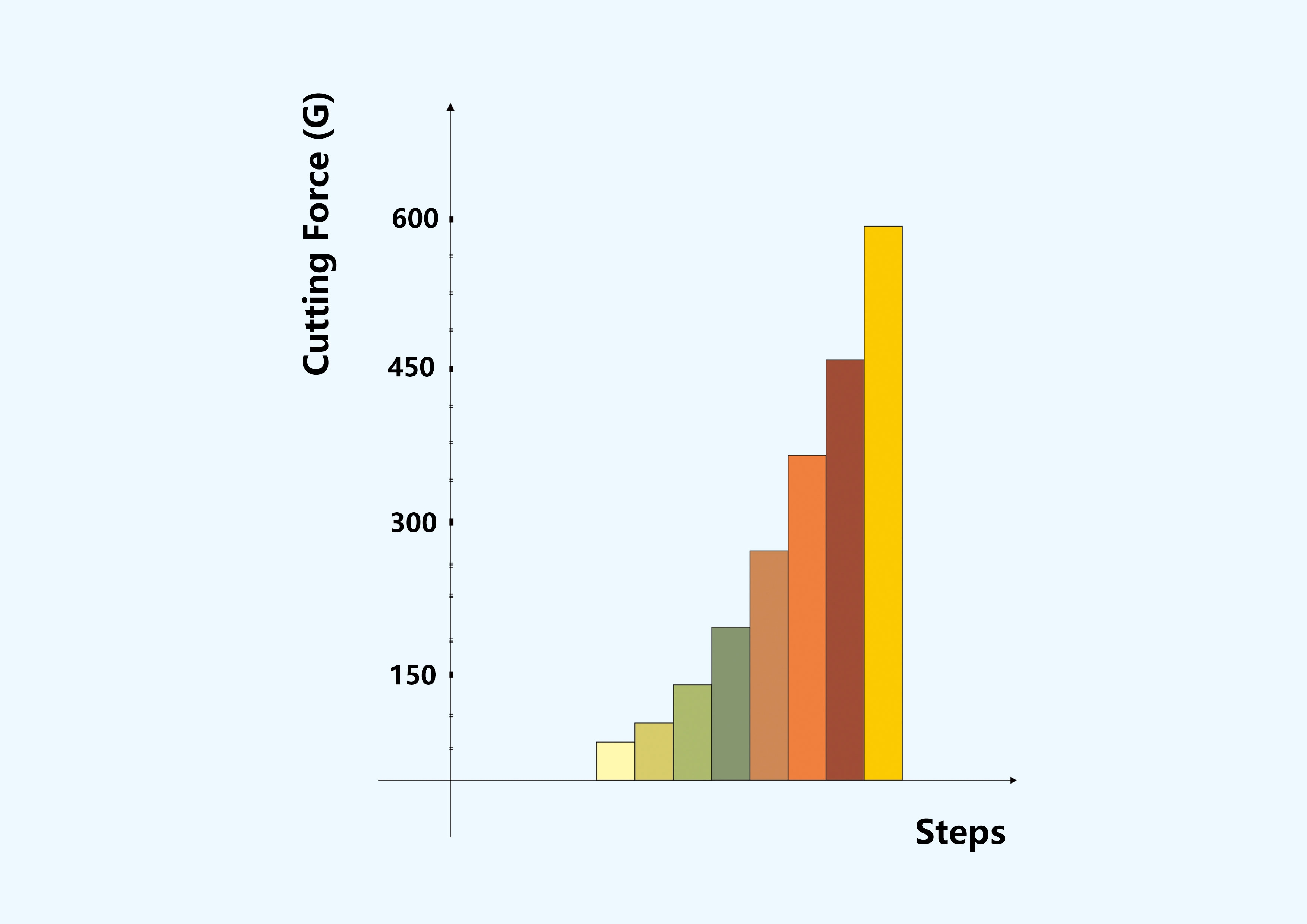

 | Cutting Force in 8 StepsIn GUNNER’s software- CADtoPlotPro, user is enabled to put different colors for different cutting paths, and set the processing sequence as color sequence, and different paths are processed by different steps of cutting force. |

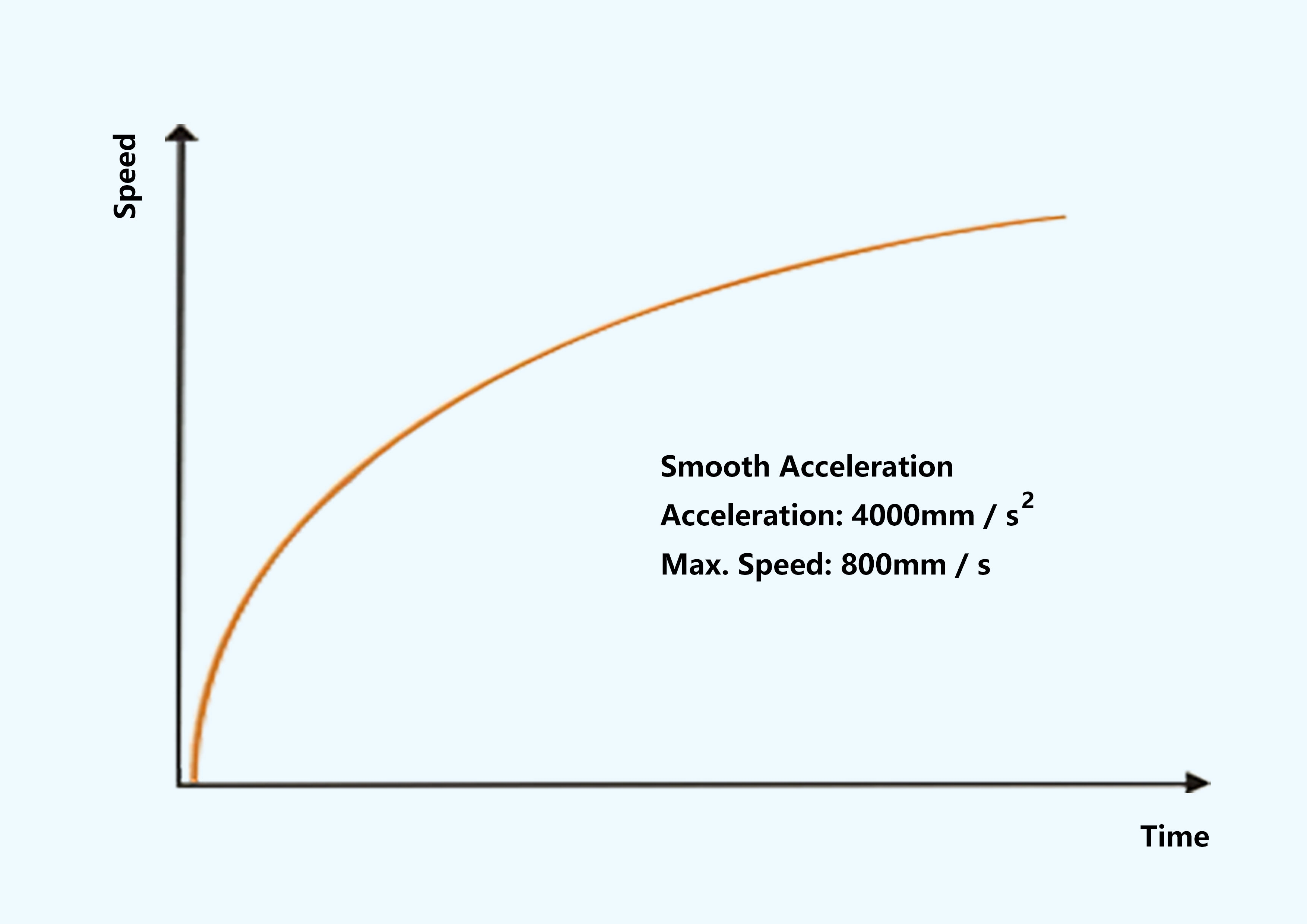

 | Acceleration: 4000mm/s2 |

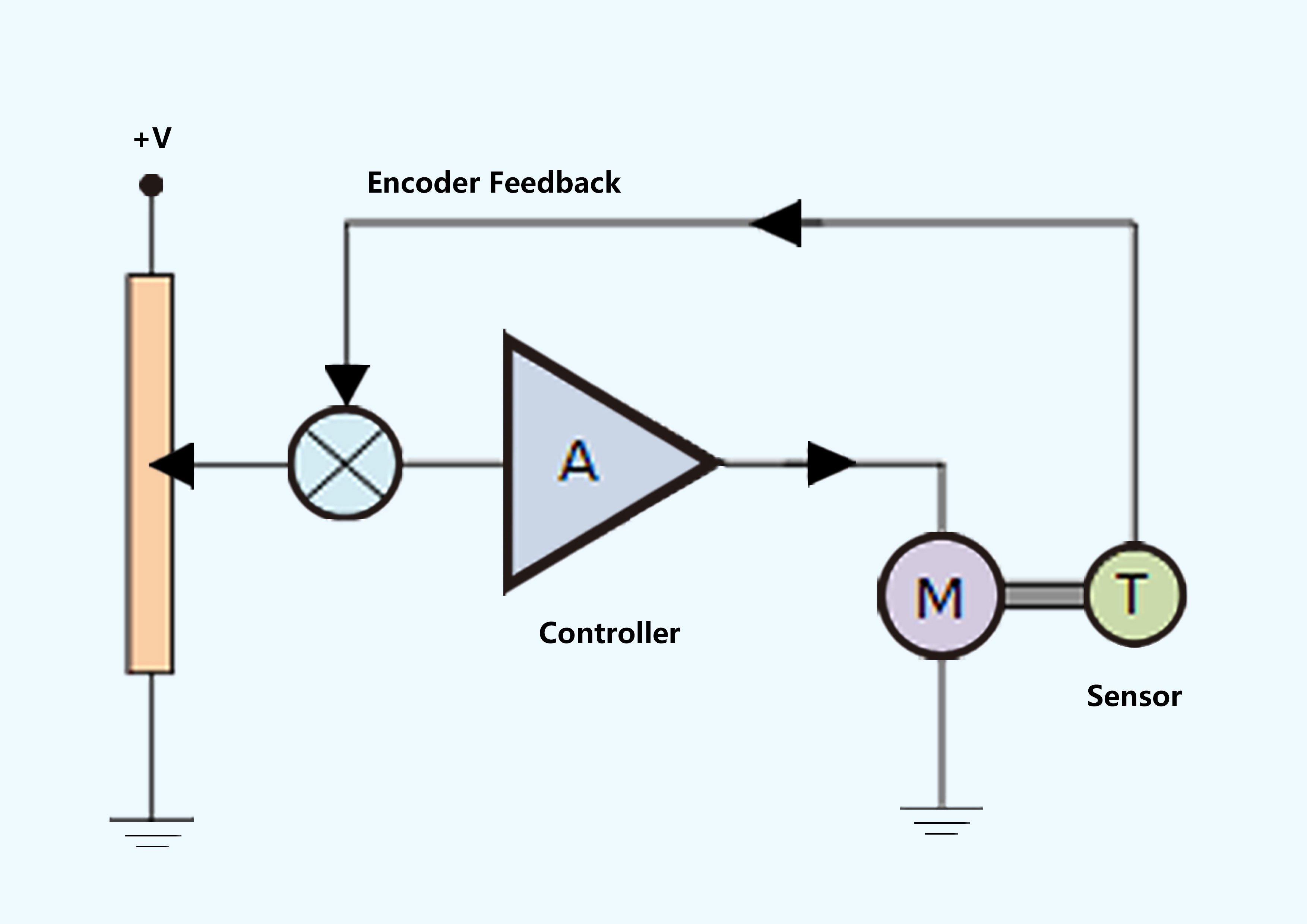

 | Servo Motor / Closed Loop ControlCutting / Plotting will be stopped when tool carriage is overloading, it is an important safety feature to protect tool carriage when media is jammed. |

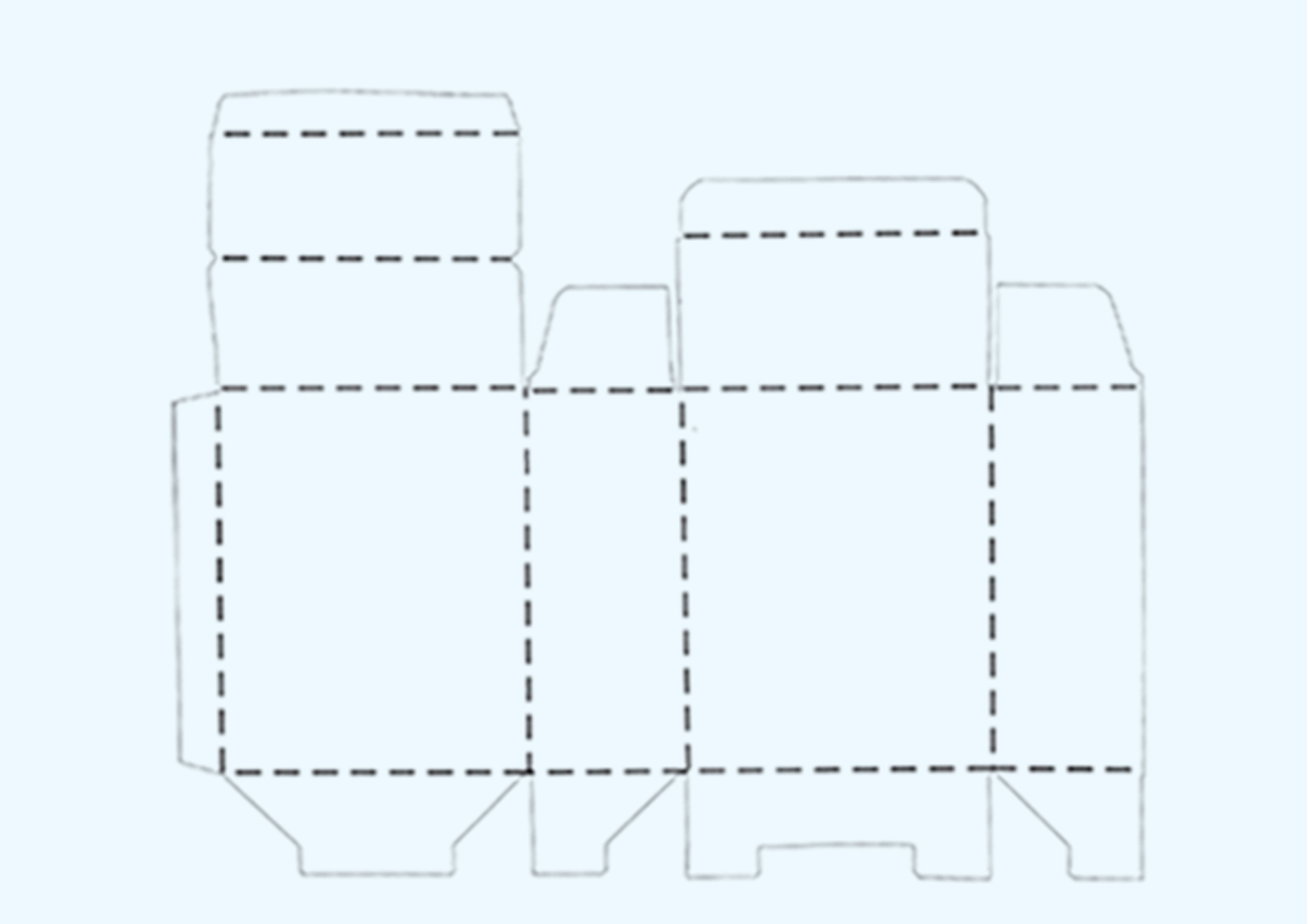

 | Dotted Lines CuttingDotted line cutting is available for medias with 2 layers typically and also kinds of paper. |
 | One-click to Clear HistoryOne-click deletion button for the currently print document and clear it completely from buffer memory. |
 | One-click to Install Print DriverSend cutting jobs by any CAD that with printer feature. |

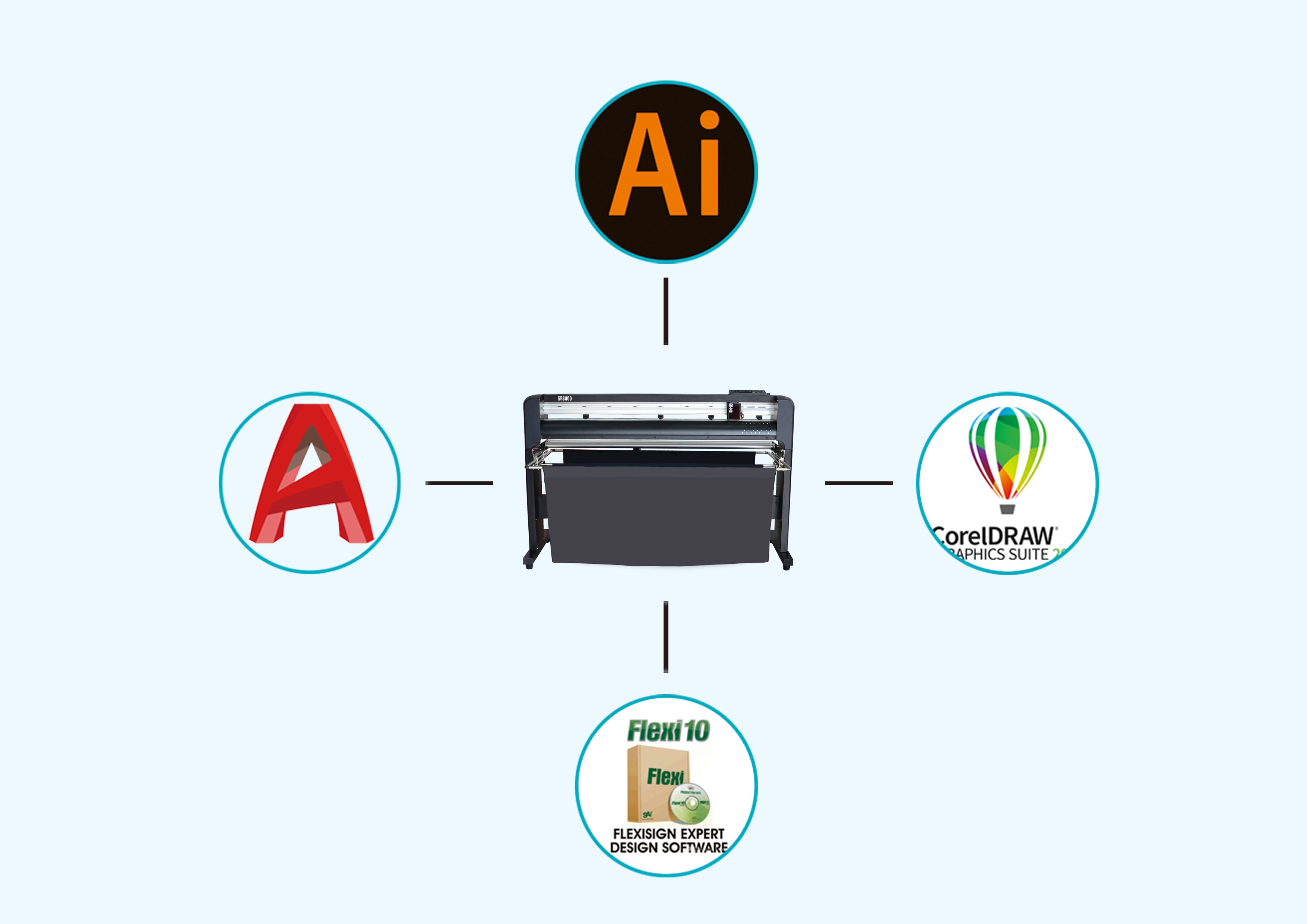

 | Compatible with AutoCAD, AI, Coreldraw and FlexisignLeading the same industry, we make software by our-self, we are able to adapt our system to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw and Flexisign. |

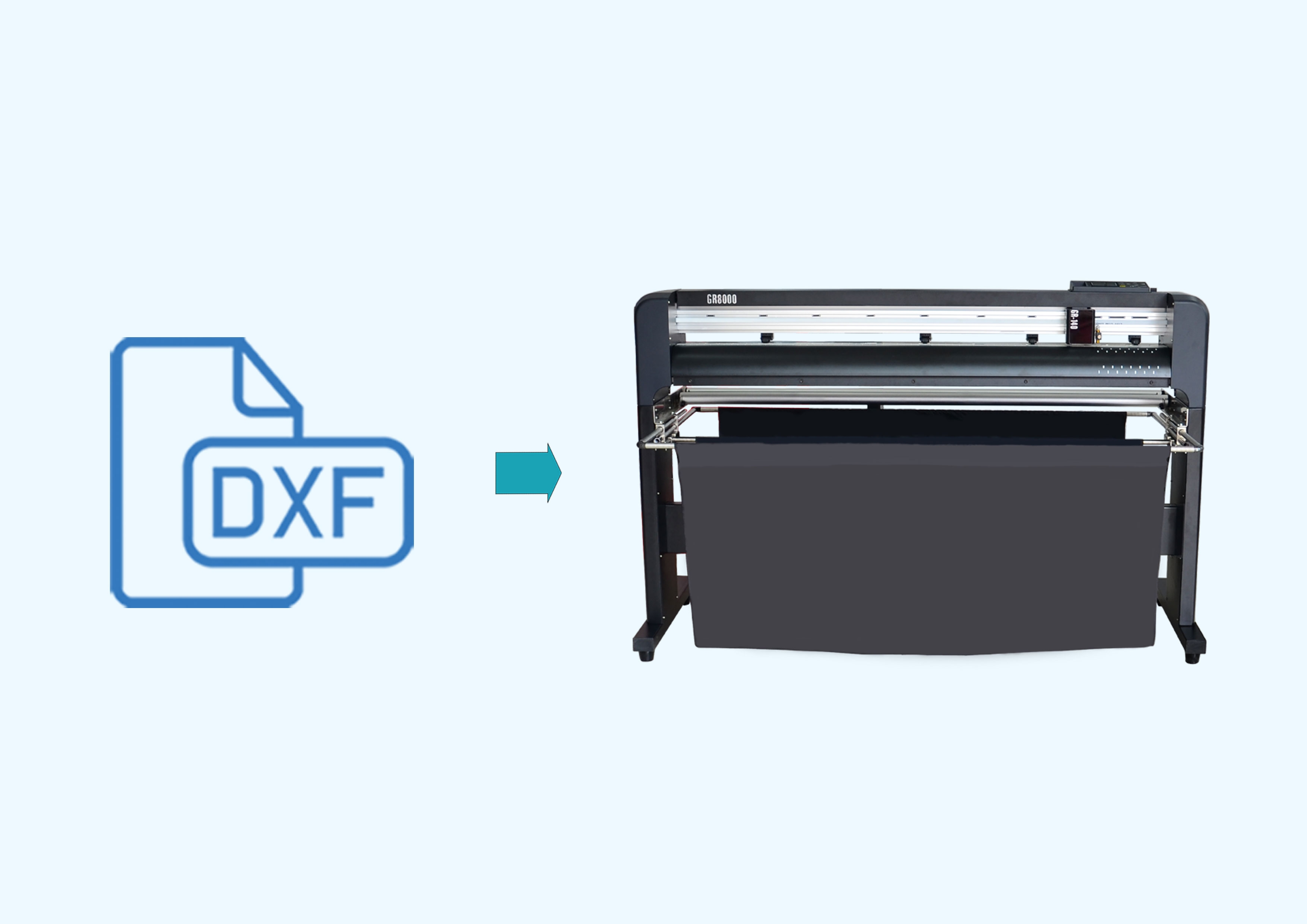

 | DXF Direct OutputGUNNER cutter is compatible with DXF file directly while no need any format transition. |

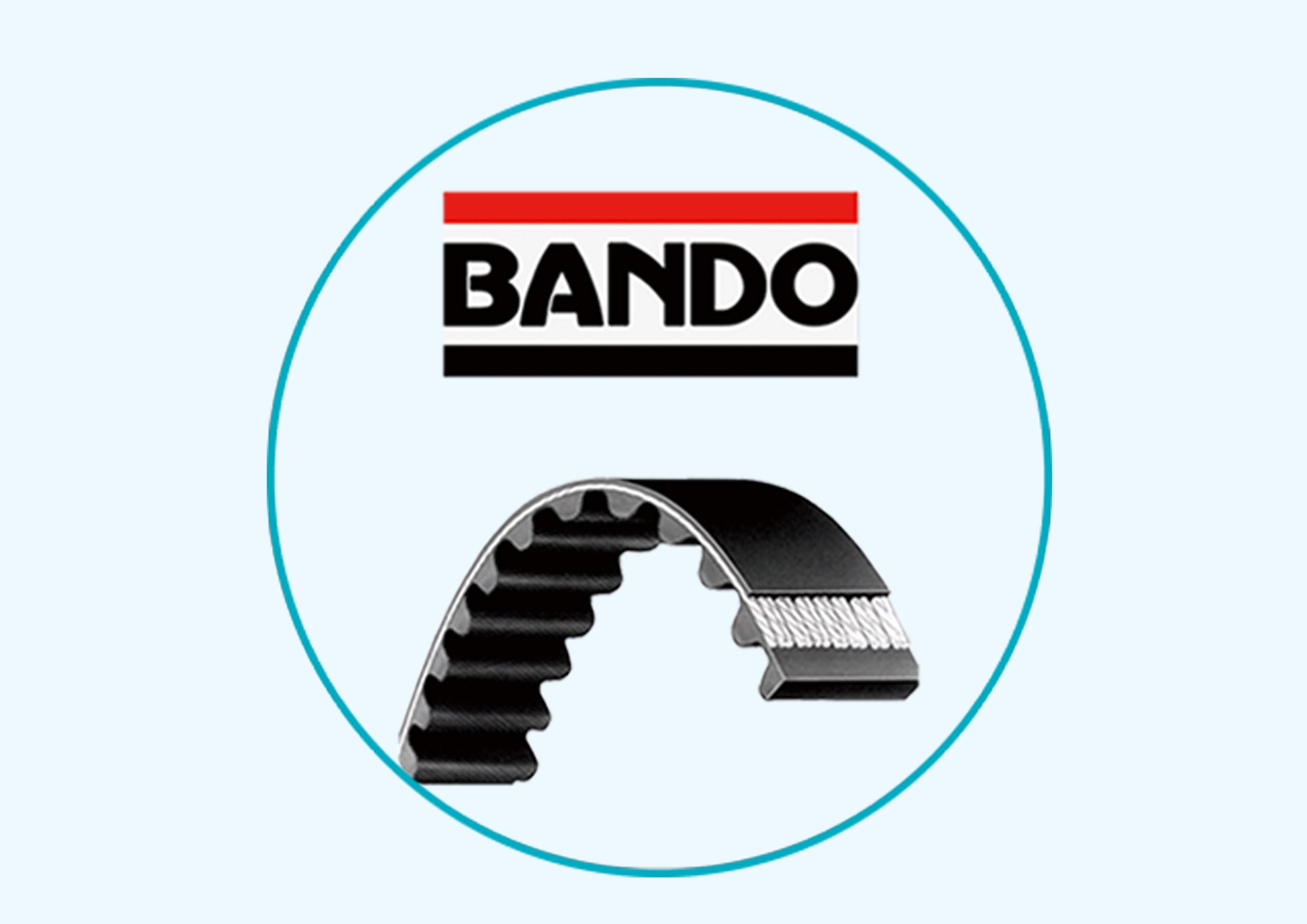

 | Quality ComponentsFor outstanding performance and long-term reliable working, we only use world class brand name components like BANDO belt, NMB bearing. |

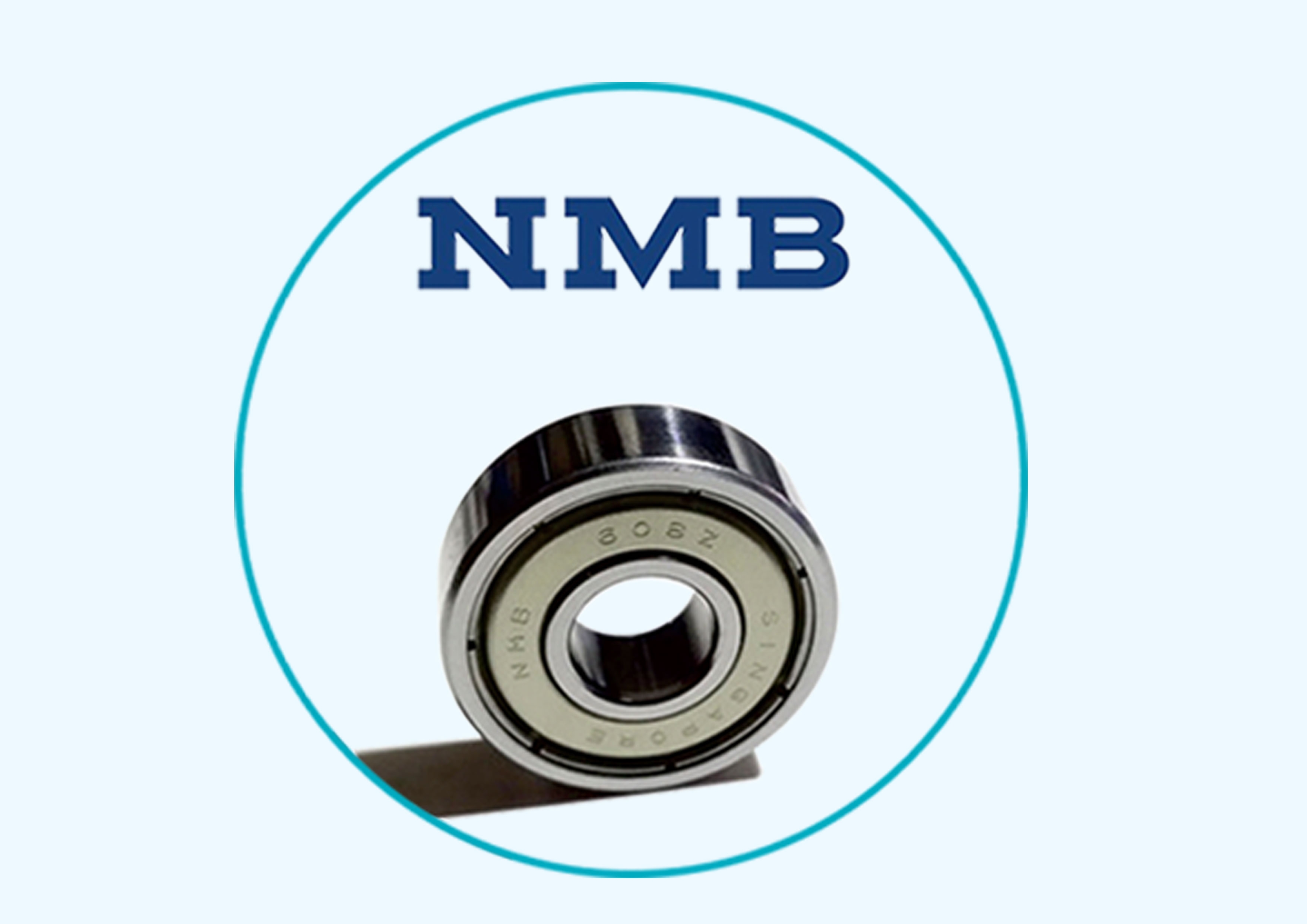

 | NMB BearingWell known as high precision, stability and long working life. |

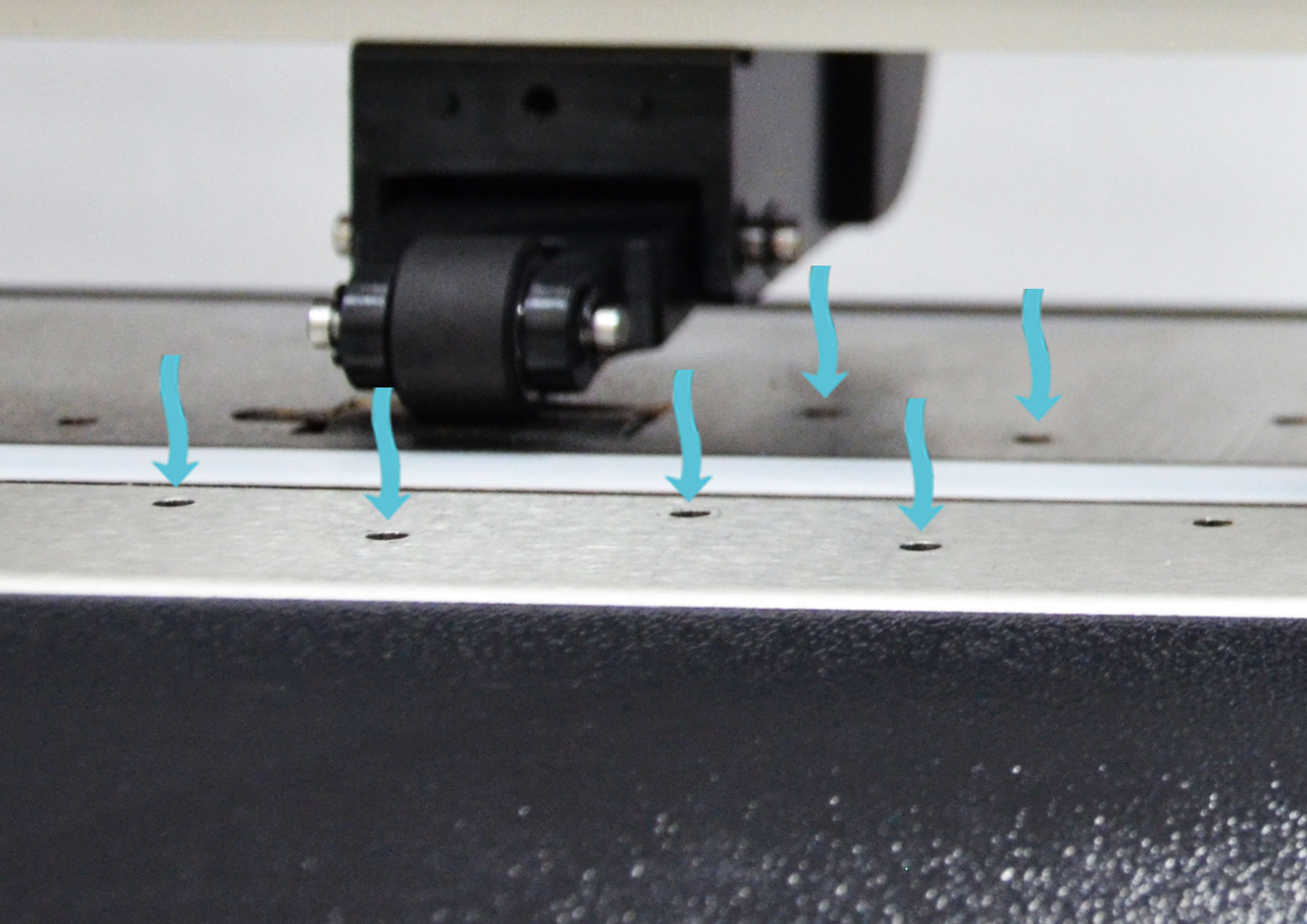

 | Suction Cutting TableDense air inlets & strong air flow to hold down the media flatly and tightly against the table top so that the tool carriage can perform fast, accurate cutting / plotting. |

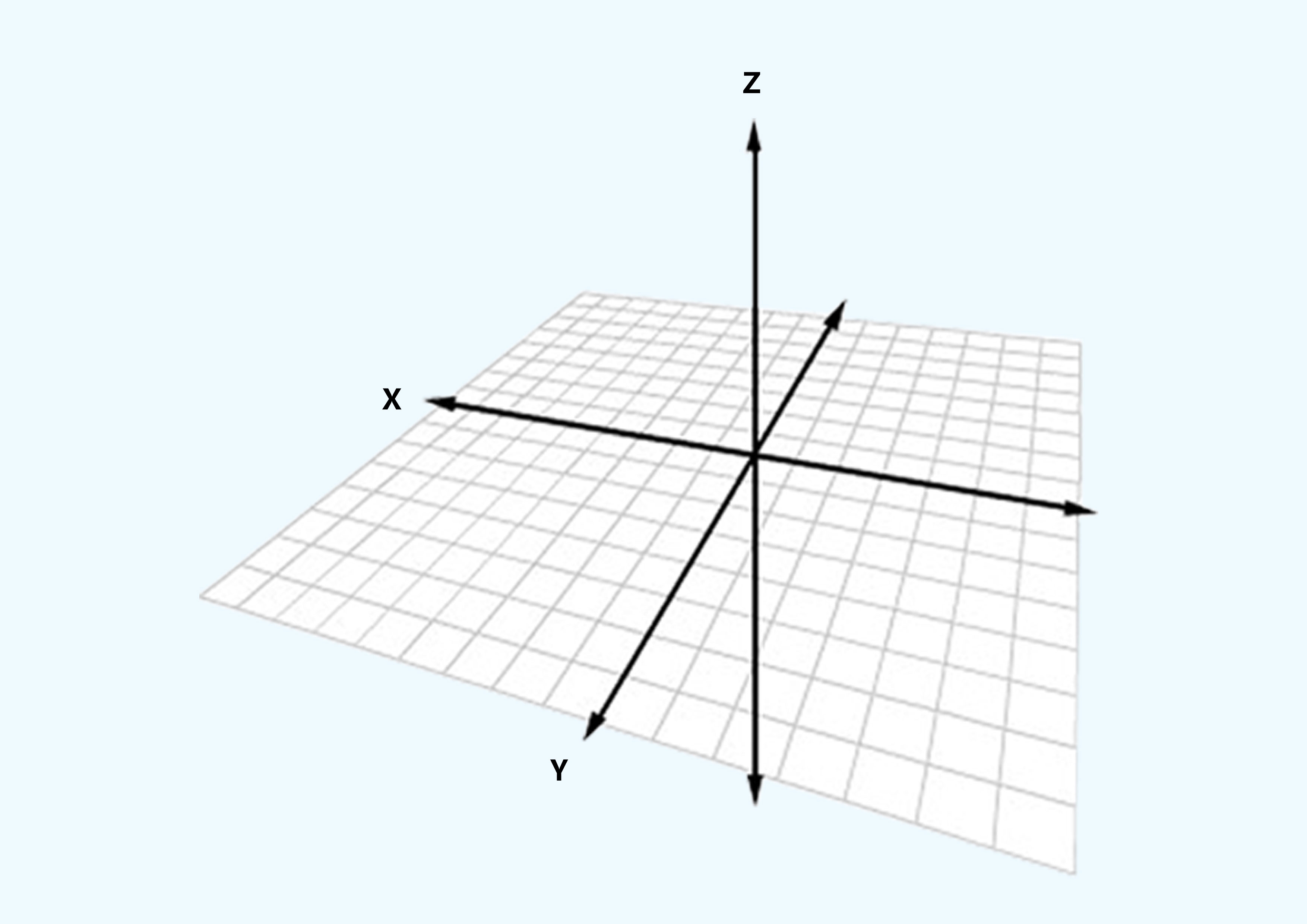

 | Leading CalibrationIndustry leading technology is applied to calibrate the perpendicular between different axes and the parallelism between track of gantry and table top. |
 | Series Cutter Blades AvailableThere are series of cutting blades available with our machine,operators choose different blades according to different situations. |
Specifications
| Model | GR8000-180 |
| Max.Cutting Width | 1630mm (Non-contour Cutting） 1520mm（Contour Cutting） |
| Max.Mountable Media Width | 1780mm |
| Min.Mountable Media Width | 70mm |
| Max.Cutting Speed | 800mm/s |
| Max.Cutting Force | 600gf/5.8N in 8 steps |
| Cutting Force Setup | Adjustable in every 1gf |
| Drive | Servo |
| Mechanical Resolution | 0.0125mm |
| Min.Circle Diameter | 0.8mm |
| Min.Character Size | 1x1mm |
| Min.Number Size | 3x3mm |
| IOS | Win10/8/7/XP |
| Memory Buffer | 2MB |
| Software | Windows Driver,SignWorkPro,CADtoPlotpro |
| LCD | English |
| File Format | HP-GL,PLT |
| Port in Standard | USB,RS-232 |
| Registration Marks Sensing | GARMS |
| Power Input | 90V-240V AC,50-60Hz |
| Power Consumption | 60w |
| Cutter Holder/Pen Holder | 1 for each |

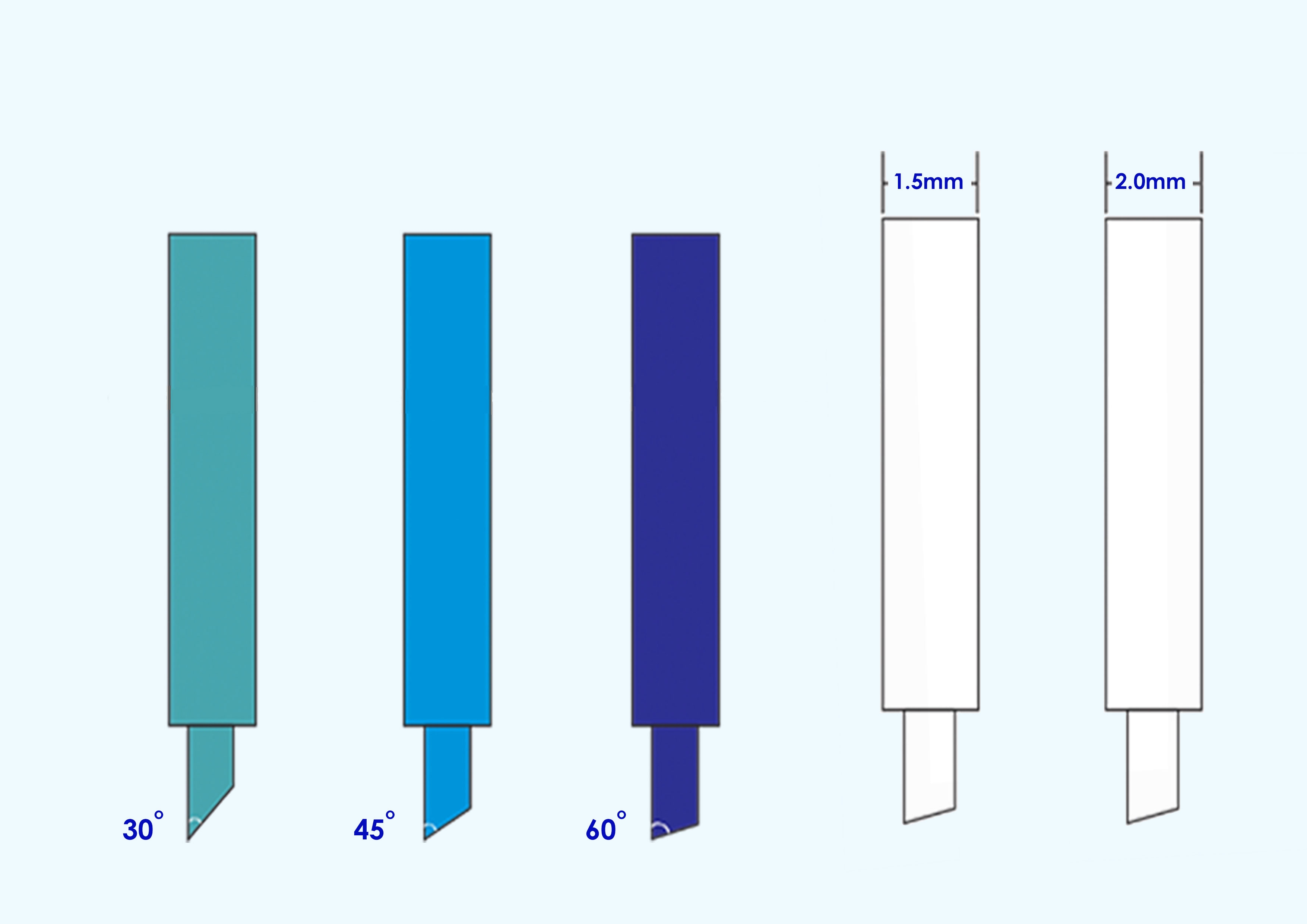

| Cutter Blade Diameters | 0.9mm,1.5mm,2.0mm |
| Cutter Blade Angles | 30°,45°,60° |
| Types of Pen Method to Fix Material | Water based fiber-tip pen & Oil based ball pen Push rollers |
| Media Stock Roller Plates | Included |
| Basket | For option |
| Package Size L-W-H | 2200x400x570mm |
| Gross/Net Weight | 105/72kg |
